Quartz sand production involves several stages, each requiring specific equipment to ensure the process is efficient and the final product meets the desired specifications. Here is a detailed breakdown of the equipment typically required for quartz sand production:
-
Crushing Equipment:

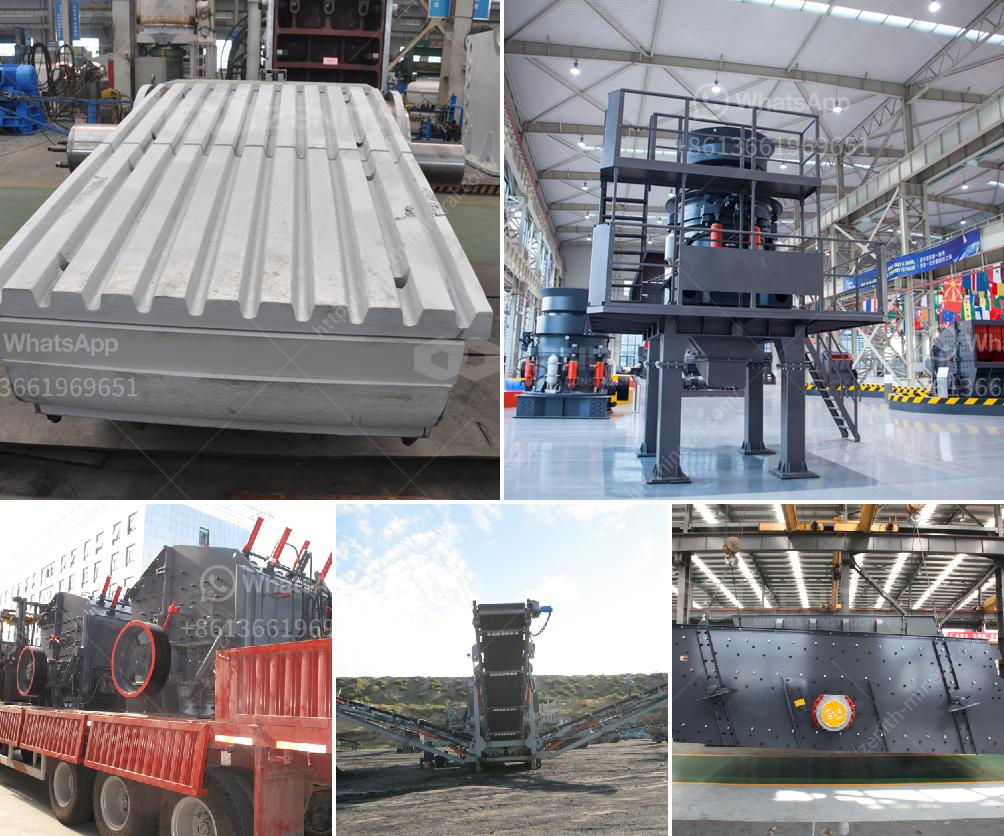

- Jaw Crusher: Used for the primary crushing of large quartz stones. It reduces the size of the raw material to manageable pieces.
- Cone Crusher: Often used for secondary crushing to further reduce the size of the quartz stones.
- Impact Crusher: Sometimes used for tertiary crushing to achieve finer particles.
-
Grinding Equipment:
- Ball Mill: A cylindrical device used to grind the crushed quartz into fine powder. It operates by rotating around a horizontal axis, partially filled with the material to be ground plus the grinding medium.
- Raymond Mill: Another type of grinding mill that can be used to produce fine quartz sand.
-
Screening Equipment:
- Vibrating Screen: Used to separate the crushed and ground quartz into different size fractions. It ensures that the final product meets the required size specifications.
-
Washing Equipment:
- Sand Washer: Used to remove impurities and dust from the quartz sand. It ensures the sand is clean and of high quality.
-
Magnetic Separator:
- Used to remove any magnetic impurities from the quartz sand, ensuring the purity of the final product.
-
Drying Equipment:
- Rotary Dryer: Used to dry the washed quartz sand. It ensures that the sand has the appropriate moisture content for further processing or final use.
-
Dust Collection System:
- Baghouse Dust Collector: Used to capture and remove dust generated during the crushing, grinding, and screening processes. It helps in maintaining a clean and safe working environment.
-
Conveying Equipment:
- Belt Conveyor: Used to transport the quartz sand between different stages of the production process. It ensures smooth and efficient movement of materials.
-
Control System:
- PLC Control System: Used to automate and control the entire production process. It ensures that the equipment operates efficiently and the production process is optimized.
-
Auxiliary Equipment:
- Feeders: Used to feed the raw quartz stones into the crushers and other processing equipment.
- Hoppers: Used to store and manage the flow of materials between different stages of the production process.
Each piece of equipment plays a crucial role in the production of high-quality quartz sand. The specific configuration and combination of equipment can vary depending on the desired specifications of the final product and the scale of production.
