Processing copper concentrate involves several key steps, each requiring specific types of equipment to efficiently extract and refine the copper. Here are the essential types of equipment typically used in copper concentrate processing:

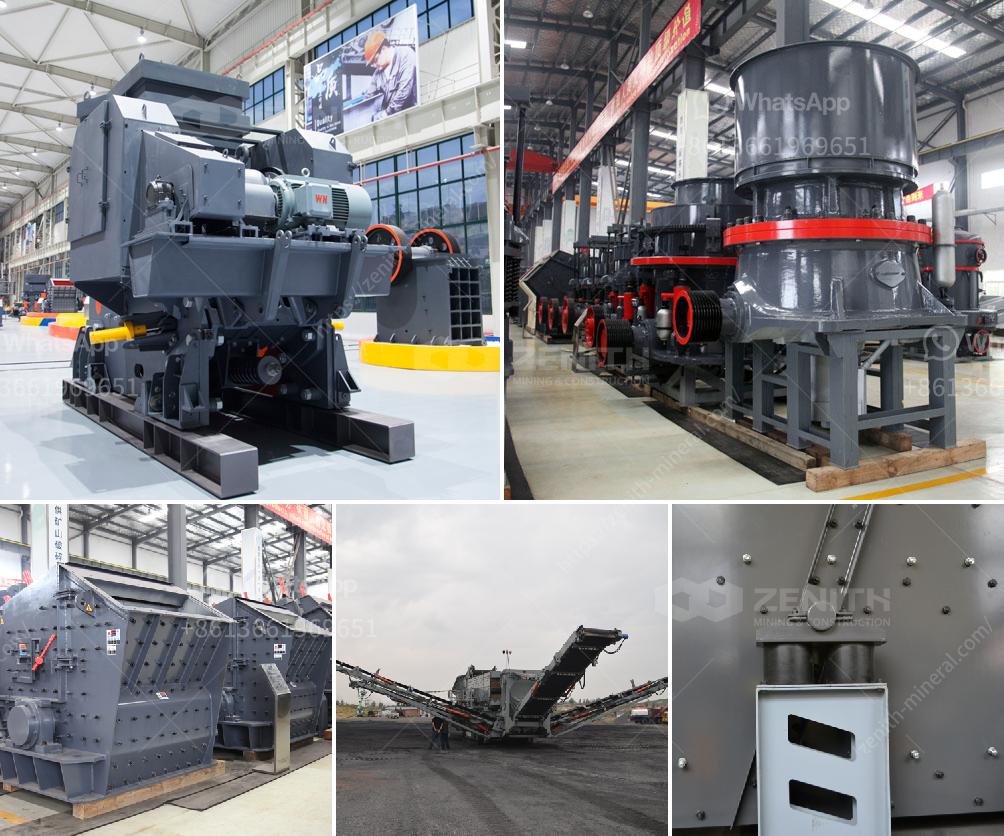

Crushers: These are used to crush the mined ore into smaller pieces to facilitate further processing. Common types include jaw crushers, cone crushers, and gyratory crushers.
Grinding Mills: Once the ore is crushed, it is further ground to liberate the copper minerals from the waste rock. Equipment such as ball mills, rod mills, and SAG (semi-autogenous grinding) mills are used for this purpose.
Flotation Cells: Flotation is the primary method for concentrating copper from the ore. Flotation cells are used to separate copper minerals from the non-copper materials by taking advantage of differences in their hydrophobic properties.
Thickeners and Clarifiers: These are used to dewater the slurry, removing excess water and preparing the concentrate for further processing. They increase the concentration of the copper by removing water.
Filters: Rotary vacuum filters or pressure filters are used to further dewater the concentrate, reducing its moisture content and preparing it for smelting.
Roasters and Smelters: These are used to heat the concentrate to high temperatures to remove impurities and produce a crude form of copper known as "copper matte."
Furnaces and Converters: Induction or electric furnaces, as well as converters like Peirce-Smith converters, are used to further refine copper matte into blister copper, which contains a higher percentage of pure copper.
Electrolytic Cells: In the final stages of copper refining, electrolytic cells are used to further purify blister copper to produce cathode copper, which is of very high purity.
Scrubbers and Dust Collection Systems: These are important for environmental control, capturing emissions and dust generated during the processing steps.
Each of these pieces of equipment plays a vital role in the efficient processing of copper concentrate, turning raw ore into a refined and marketable product.
