A 10 tons per hour (tph) tin ore slag beneficiation processing plant typically involves several key stages to ensure the efficient recovery of tin from slag materials. Here’s an outline of the general process flow:
1. Crushing and Screening:
- Objective: To break down the tin ore slag into smaller, manageable pieces for further processing.

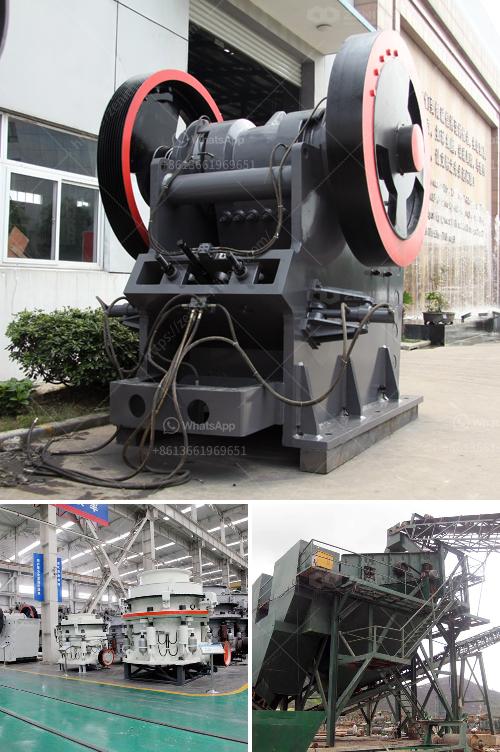

- Equipment: Jaw crushers, cone crushers, and vibrating screens.
2. Grinding:
- Objective: Further reduce the size of the ore to liberate the tin particles.
- Equipment: Ball mills or rod mills.
3. Gravity Separation:
- Objective: To separate tin ore particles from the waste materials using their different specific gravities.
- Equipment: Jig concentrators, shaking tables, spiral classifiers.
4. Magnetic Separation:
- Objective: To remove any magnetic impurities that might be present in the ore.
- Equipment: Magnetic separators.
5. Flotation:
- Objective: To enhance the concentration of tin, especially useful if the ore contains a variety of associated minerals.
- Equipment: Flotation cells.
6. Dewatering:
- Objective: To remove excess water from the final tin concentrate.
- Equipment: Thickeners, centrifuges, and rotary dryers.
7. Smelting:
- Objective: To extract pure tin from the concentrate.
- Equipment: Smelting furnace.
8. Refining:
- Objective: To produce high-purity tin.
- Equipment: Electrolytic refining cells, or indigenous refining methods depending on the desired purity level.
Example Layout:
1. Crushing & Screening -> 2. Grinding -> 3. Gravity Separation -> 4. Magnetic Separation -> 5. Flotation -> 6. Dewatering -> 7. Smelting -> 8. Refining
Considerations for Plant Design:
- Ore Characteristics: Assess the mineral composition and the distribution of tin in the ore slag.
- Capacity: Ensure all equipment and processes are appropriately scaled for 10tph operations.
- Environment: Implement dust suppression and water recycling systems to manage environmental impact.
- Energy Consumption: Optimize for energy efficiency at every stage of the process.
- Safety: Design for safe operation, including adequate ventilation, protective gear, and emergency procedures.
By integrating these stages and considerations, a well-designed 10tph tin ore slag beneficiation processing plant can operate efficiently, maximizing tin recovery while minimizing environmental impact and operational costs.
