50tph manganese ore processing plant

A 50 tons per hour (tph) manganese ore processing plant requires several critical components to ensure efficient and effective processing of the ore. Here’s a general outline of what such a plant might include:

  1. Crushing System:

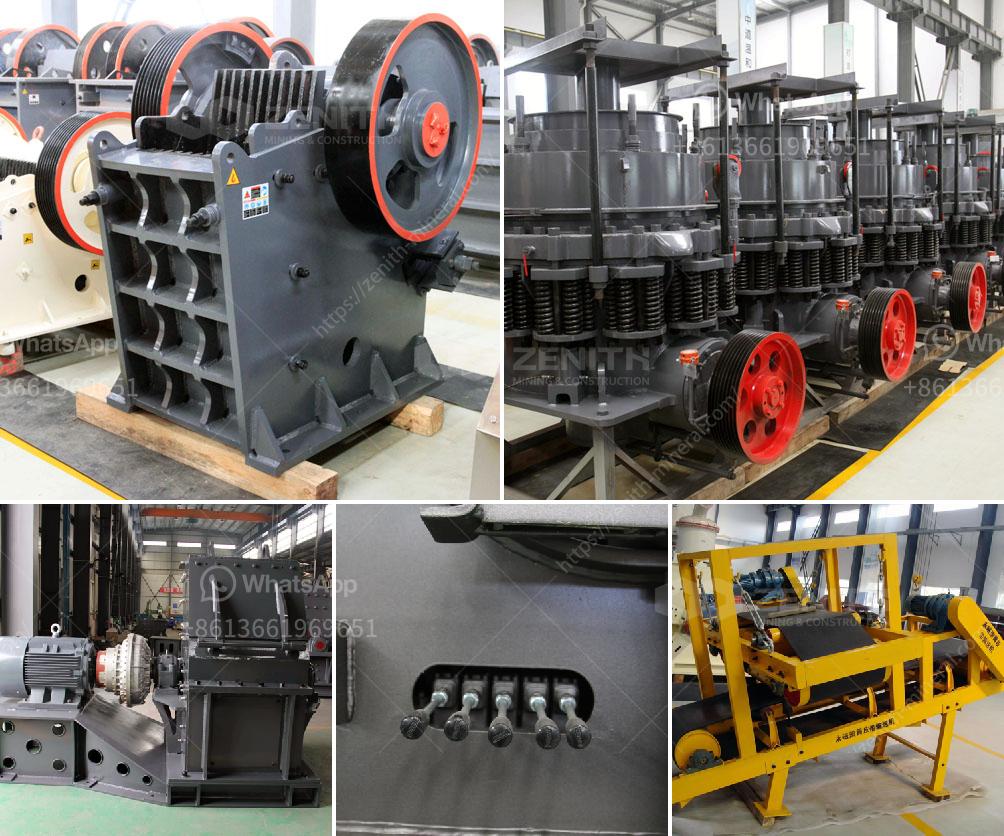

    • Jaw Crusher: To break down the manganese ore into smaller pieces suitable for further processing.
    • Impact Crusher or Cone Crusher: For secondary crushing to achieve the desired granularity.

  2. Screening System:

    • Vibrating or Trommel Screen: To separate crushed manganese ore by size, ensuring uniform particle sizes for the next stage.

  3. Washing System:

    • Scrubber or Log Washer: For removing impurities such as clay, sand, and grime from manganese ore particles.
    • Spiral Classifier or Hydrocyclone: For further washing and grading the cleansed minerals.

  4. Gravity Separation System:

    • Jig Machine: Utilized for density-based separation, ensuring high concentration of manganese.
    • Shaking Table: For finer separation and concentration, improving ore quality.

  5. Magnetic Separation:

    • High-Intensity Magnetic Separator: Necessary if the manganese ore has magnetic properties, to separate magnetic minerals from non-magnetic.

  6. Flotation System:

    • Flotation Cells: For the separation of manganese from other non-desirable minerals.

  7. Thickening and Filtration:

    • Thickener: To increase the manganese content in the slurry by removing excess water.
    • Filter Press: For dewatering the ore concentrate.

  8. Conveying System:

    • Belt Conveyors: For transporting the material between different stages of processing efficiently.

  9. Control System:

    • PLC (Programmable Logic Controller): For automation and control of the processing plant ensuring the process stays optimized.

  10. Water Treatment Plant:

    • For recycling water used in washing processes to minimize environmental impact.

A well-designed 50tph manganese ore processing plant will ideally include all these components, operating in harmony to produce a high-quality product efficiently. It's also important to customize the design based on the specific characteristics of the manganese ore deposit and the local processing requirements.
