In the development of human society, the invention of the steel plays a very big role. Even now, the production of steel is still a very important figure to measure one country's industrial development level. So the iron mining is very import for every country.

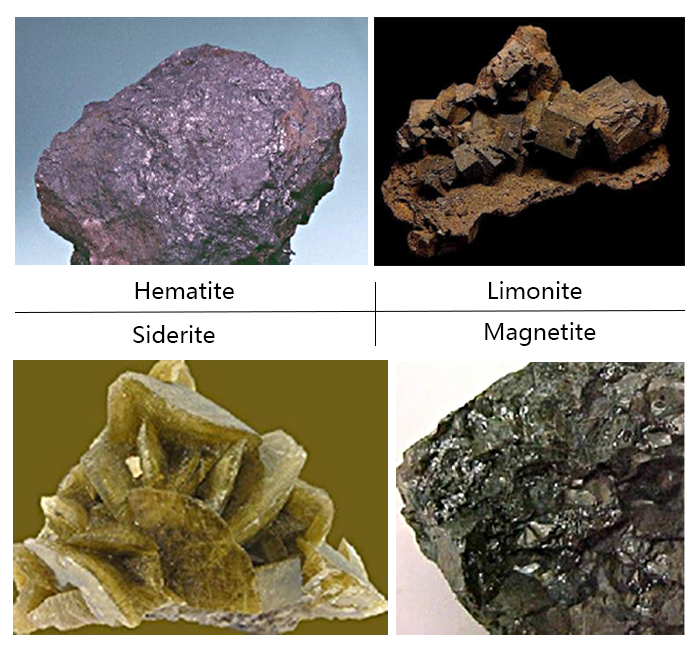

Types of Iron ore:
The main type for steel smelting is Magnetite hematite, siderite, Limonite etc. Fe is always exists in nature by the state of the compound and It occurs chiefly as the dioxide. Here is the specification of the above Iron ore.
| Name | Content | Specific gravity | Color | Theoretical grade | Cutoff grade | Production grade |
| Magnetite | Fe3O4 or FeO· Fe2O3 | 5.15 | Dark gray | 72.40% | TFe≥20%, mFe≥15% | TFe≥25%, mFe≥20% |
| Hematite | Fe2O3 | 5.26 | Dark red | 70% | TFe≥25% | TFe≥28% |
| Siderite | FeCO3 | 3.8 | Steel grey | 48% | TFe≥20% | TFe≥25% |
| Limonite | Fe2O3·nH2O | 3.6～4.9 | Ocher or brown | 62.90% | TFe≥25% | TFe≥30% |
Note: If the Magnetie contain too much iron silicate, iron sulphide and iron carbonate, please use
the mFe standard.
The Solution for processing Iron ore
Magnetite:
a. Low intensity magnetic separation (LIMS) technology.
b
Low intensity magnetic separation technology+ flotation process
Hematite:
a. High intensity magnetic separation technology;
b.
Reduction roasting process+Low intensity magnetic separation technology
c. High intensity magnetic
separation technology+gravity treatment process+flotation techniques
Siderite:
a. High intensity magnetic separation technology
b.Neutral
roasting process+low intensity magnetic separation technology
c.Flotation process or Flotation +
high intensity magnetic separation technology
Limonite:
a. High intensity magnetic separation techniques
b.Roast
reduction process+ Low intensity magnetic separation techniques
c. High intensity magnetic
separation techniques+ flotation techniques
Among all the processing methods, how to determine which method is the best for your iron ore?
Doing the dressing test is for choosing the suitable and economical mineral processing technology The
research report will be as the basis of the project feasibility study.
Common equipment
PEW Jaw Crusher, HP Cone Crusher, HST Cone Crusher, S series cone crusher, vibrating screen
Ball
mill
Hydro cyclone, spiral classifier
CTL series dry magnetic separator
CT series wet
magnetic separator
SF Series Flotation Cells
BF Series Flotation Cells
XCF-KYF Series
Flotation Cells
