Extracting gold from ore involves several steps, each requiring specific techniques and equipment. Here’s a detailed overview of the process:
1. Mining the Ore
The first step is to mine the gold ore from the earth. This can be done through various methods such as:
- Placer Mining: Extracting gold from alluvial deposits using water and gravity.
- Hard Rock Mining: Extracting gold from solid rock, often requiring blasting and drilling.
2. Crushing the Ore
Once the ore is mined, it needs to be crushed to liberate the gold particles. This involves:

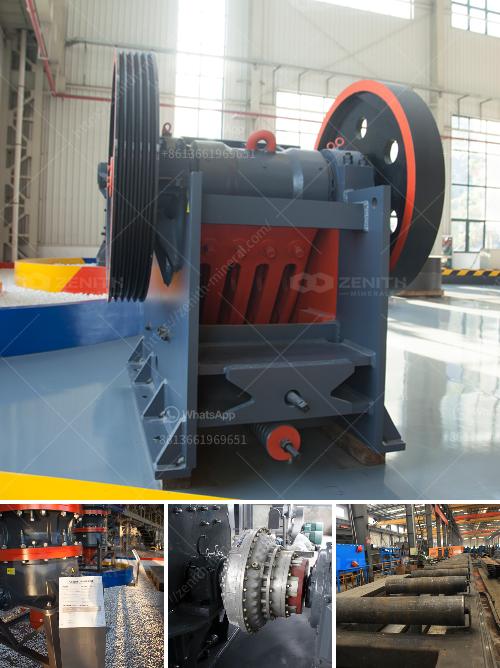

- Primary Crushing: Using jaw crushers or gyratory crushers to break down large chunks of ore into smaller pieces.
- Secondary Crushing: Further reducing the size of the ore using cone crushers or impact crushers.
3. Grinding the Ore
After crushing, the ore is ground to a fine powder to increase the surface area for the extraction process. This is typically done using:
- Ball Mills: Cylindrical devices filled with steel balls that grind the ore by rotating.
- SAG Mills: Similar to ball mills but use larger rocks and steel balls to grind the ore.
4. Concentration
The ground ore is then concentrated to separate the gold from other minerals. Common methods include:
- Gravity Concentration: Using gravity to separate heavy gold particles from lighter materials. Equipment like jigs, shaking tables, and spiral concentrators are used.
- Flotation: Adding chemicals to a slurry of ground ore and water to create froth, which gold particles attach to and float to the surface.
5. Extraction
The concentrated ore undergoes chemical processes to extract the gold. The most common methods are:
- Cyanidation: Using a cyanide solution to dissolve gold, which is then recovered from the solution. This involves:
- Leaching: Adding cyanide to the ore to form a gold-cyanide complex.
- Adsorption: Using activated carbon to adsorb the gold-cyanide complex.
- Elution: Removing gold from the activated carbon.
- Electrowinning: Using an electric current to recover gold from the solution.
- Amalgamation: Mixing mercury with the ore to form an amalgam, which is then heated to vaporize the mercury, leaving behind gold.
6. Refining
The extracted gold is refined to remove impurities. This can be done through:
- Smelting: Heating the gold to a high temperature to separate it from other metals.
- Electrolytic Refining: Using an electrolytic cell to purify the gold.
7. Final Product
The refined gold is then cast into bars, coins, or other forms for sale or further use.
Safety and Environmental Considerations
- Safety: Proper safety measures must be taken to protect workers from hazards such as dust, chemicals, and heavy machinery.
- Environmental Impact: Mining and extraction processes can have significant environmental impacts, including habitat destruction, water pollution, and chemical spills. It’s crucial to follow regulations and use environmentally friendly practices.
Conclusion
Extracting gold from ore is a complex process that involves mining, crushing, grinding, concentration, extraction, and refining. Each step requires specialized equipment and techniques to efficiently and safely recover gold. Proper safety and environmental practices are essential to minimize the impact on workers and the environment.
