10tph rock coltan ore processing plant

To design a "10tph rock coltan ore processing plant," we need to consider several key components and steps involved in the processing of coltan ore. Coltan, short for columbite-tantalite, is a metallic ore from which niobium and tantalum are extracted. These metals are crucial for various high-tech applications, including electronics and aerospace.

Key Components and Steps in a Coltan Ore Processing Plant

  1. Crushing and Grinding:

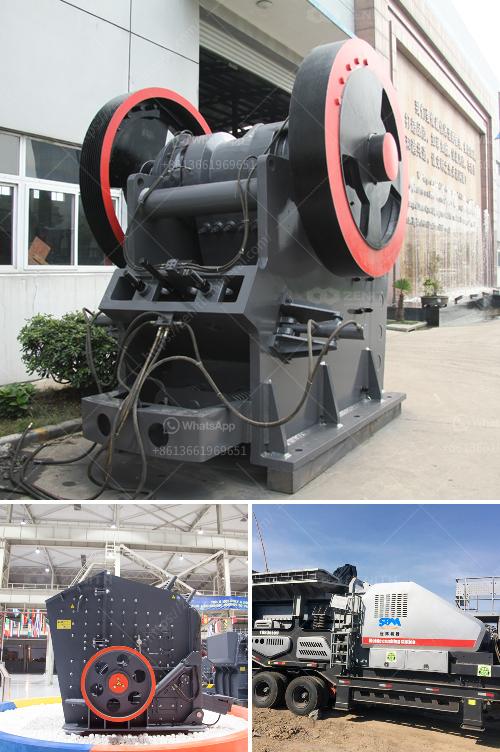

    • Primary Crusher: The raw coltan ore is initially crushed using a jaw crusher to reduce the size of the rocks.
    • Secondary Crusher: Further size reduction is achieved using a cone crusher or impact crusher.
    • Grinding Mill: The crushed ore is then ground into finer particles using a ball mill or rod mill.
  2. Screening:

    • Vibrating Screen: The ground ore is passed through a vibrating screen to separate particles based on size. Oversized particles are returned to the crusher for further reduction.
  3. Gravity Separation:

    • Jig Separator: This equipment uses water and gravity to separate heavier coltan particles from lighter waste material.
    • Shaking Table: A shaking table further refines the separation process by concentrating the coltan ore based on density differences.
  4. Magnetic Separation:

    • Magnetic Separator: This step removes any magnetic impurities from the coltan concentrate, ensuring a higher purity of the final product.
  5. Flotation:

    • Flotation Cells: In some cases, flotation is used to separate coltan from other minerals. Reagents are added to the slurry to make the coltan particles hydrophobic, allowing them to attach to air bubbles and float to the surface for collection.
  6. Dewatering:

    • Thickener: The concentrated coltan slurry is thickened to remove excess water.
    • Filter Press: A filter press is used to further dewater the concentrate, producing a dry coltan concentrate ready for further processing or sale.
  7. Auxiliary Equipment:

    • Pumps: Various pumps are used to transport slurry and water throughout the plant.
    • Conveyors: Belt conveyors move materials between different stages of the processing plant.
    • Control System: An automated control system monitors and controls the operation of the plant, ensuring optimal performance and efficiency.

Example Code for a Simple Control System (Python)

If you need to implement a basic control system for the processing plant, you might use a programming language like Python. Here is an example of how you might set up a simple control loop to monitor and adjust the operation of a crusher:

import time

class Crusher:
    def __init__(self):
        self.load = 0  # Initial load

    def adjust_load(self, adjustment):
        self.load += adjustment
        print(f"Crusher load adjusted to: {self.load}")

def monitor_crusher(crusher):
    while True:
        # Simulate reading load from a sensor
        current_load = crusher.load
        print(f"Current crusher load: {current_load}")

        # Simple control logic
        if current_load < 50:
            crusher.adjust_load(10)  # Increase load
        elif current_load > 100:
            crusher.adjust_load(-10)  # Decrease load

        time.sleep(1)  # Wait for 1 second before next check

if __name__ == "__main__":
    crusher = Crusher()
    monitor_crusher(crusher)

This code sets up a simple control loop that monitors the load on a crusher and adjusts it based on predefined thresholds. In a real-world application, you would replace the simulated load readings with actual sensor data and implement more sophisticated control logic.

Conclusion

Designing a 10tph rock coltan ore processing plant involves several key steps, including crushing, grinding, screening, gravity separation, magnetic separation, flotation, and dewatering. Each step requires specific equipment and careful control to ensure efficient and effective processing of the coltan ore. By understanding these components and their functions, you can design a processing plant that meets your production goals and quality standards.
