Setting up a 50 TPH (tons per hour) manganese ore processing plant involves several stages to ensure efficient extraction and processing of the ore. Here is an outline of the typical steps:
-
Crushing:

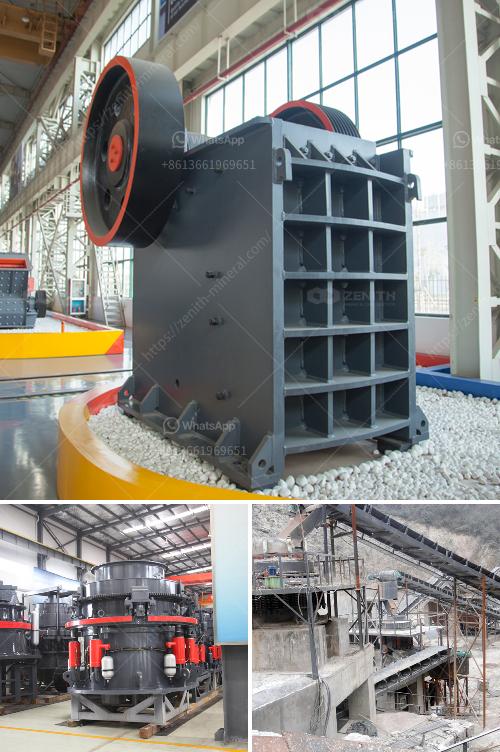

- Primary Crushing: Utilizes a jaw crusher to reduce ore size to manageable chunks.
- Secondary Crushing: A cone or impact crusher further reduces the ore size after primary crushing.
-
Screening:
- Vibratory Screens: Separate the crushed ore into different size fractions to ensure proper downstream processing.
-
Grinding:
- Ball Mill or Rod Mill: Converts ores to a fine powder to liberate manganese particles from waste materials.
-
Classification:
- Hydrocyclones and Spirals: Classify ground material based on particle size.
-
Concentration:
- Gravity Separation: Jigs, shaking tables, or cyclones are utilized to separate manganese-rich particles.
- Magnetic Separation: Removes magnetic impurities if present.
- Flotation: May be applied if there are sulfide minerals associated with the manganese ore.
-
Dewatering:
- Thickeners and Filtration: Remove excess water from the manganese concentrate.
-
Drying:
- Rotary Dryer or Kiln: Ensures the final product has an appropriate moisture content for storage or further processing.
-
Storage and Handling:
- Conveyors: Transport the processed ore to storage or shipping facilities.
- Storage Bins: Ensure the manganese concentrate is kept secure until it is needed.
-
Quality Control:
- Sampling and Testing: Regularly monitor the quality of the processed ore to ensure it meets industry standards.
-
Environmental Management:
- Tailings Management: Proper disposal or reprocessing of waste materials.
- Water Treatment: Ensuring that water used in the process is treated and either reused or released safely.
Key Considerations:
- Feasibility Study: Conducted to assess economic viability and technical specifications.
- Permits and Compliance: Adhering to environmental and industrial regulations.
- Energy Consumption: Optimizing processes to reduce energy usage.
- Automation: Implementing automated controls to increase efficiency and reduce manual labor.
If you're in the planning stages, it’s also crucial to work with experienced engineers and consultants to design and build the plant. They can help tailor the setup to the specific characteristics of the manganese ore and local conditions.
