10tph copper mine processing plant

Certainly! Here's a brief overview of a 10 tons per hour (tph) copper mine processing plant:

Overview:

A 10 tph copper mine processing plant is designed to extract and process copper ore to produce copper concentrate or pure copper. This scale of plant is suitable for small to medium mining operations.

Key Components:

1. Crushing and Screening:

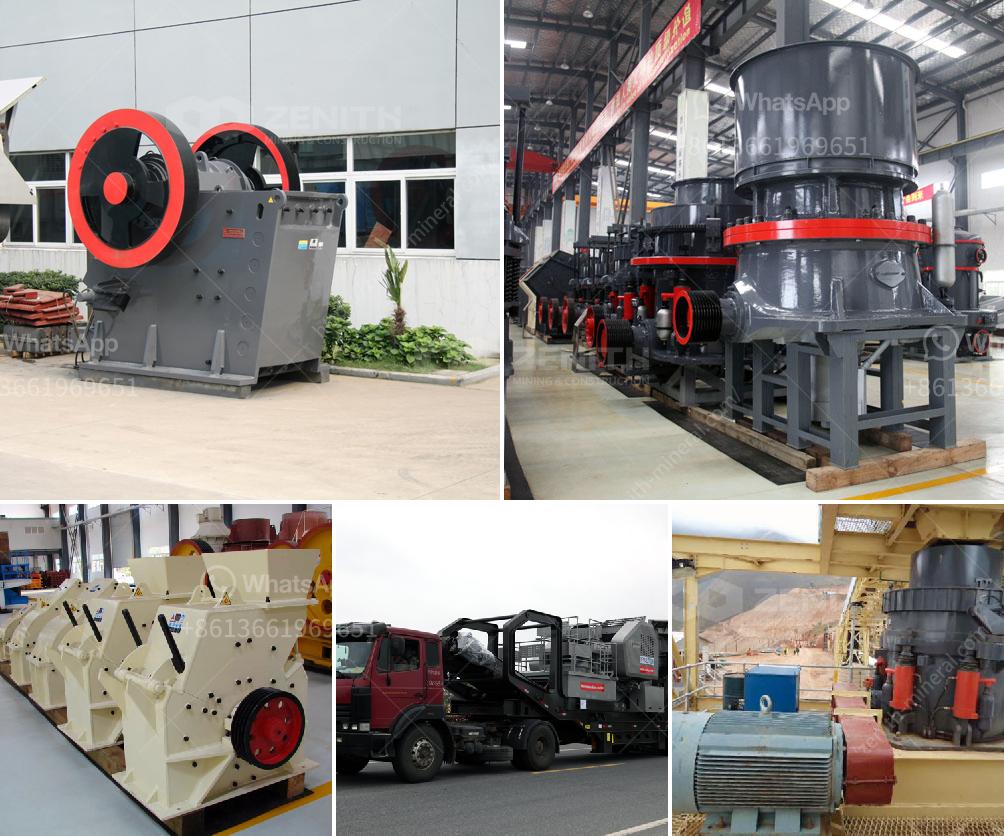

   • Jaw Crusher: Primary crushing of copper ore to reduce its size for further processing.
   • Impact Crusher or Cone Crusher: Secondary crushing to achieve the desired particle size.
   • Screening Equipment: To separate ore particles by size before further processing.

2. Grinding:

   • Ball Mill or SAG Mill: Used to grind the crushed copper ore into fine particles to liberate the copper minerals.

3. Concentration:

   • Flotation Cells: For froth flotation method to concentrate the copper minerals from the ore.

4. Thickening and Filtration:

   • Thickeners: To remove water from the slurry, increasing the concentration of copper in the slurry.
   • Filter Press: To dewater the concentrated slurry.

5. Tailings Management:

   • Tailings Pond or Thickener: To manage waste materials (tailings) after the copper has been extracted.

6. Auxiliary Systems:

   • Pumps and Piping: For slurry transportation throughout the plant.
   • Control Systems: Automated systems for monitoring and controlling plant operations.

Process Flow:

1. Ore Receiving and Crushing:

   • Copper ore is transported to the plant and initially crushed by the jaw crusher, followed by secondary crushing.

2. Grinding and Classification:

   • The crushed material is ground in mills and classified by size, ensuring only finely ground particles proceed to the flotation process.

3. Flotation:

   • The ground ore is mixed with water and flotation reagents, air is bubbled through the mixture, creating frothy bubbles that carry the copper minerals to the surface, forming a copper-rich concentrate.

4. Thickening and Dewatering:

   • The concentrate is thickened and dewatered using thickeners and filters to reduce moisture content and prepare for further processing or sale.

5. Tailings Disposal:

   • The remaining slurry, after copper extraction, is treated and disposed of in tailings facilities or recycled back into the plant.

Output:

This plant will generate approximately 10 tons of processed copper ore per hour, yielding copper concentrate or refined copper ready for further refinement or direct sale, depending on the final processing steps undertaken.

Notes:

• The design and equipment specifications can vary based on the specific ore characteristics and local conditions.
• Environmental considerations such as proper tailings management and water recycling are critical for sustainable operations.
