Mining iron ore involves several processes that are designed to extract the ore from the earth and prepare it for further processing. Here is a detailed overview of the main processes used in iron ore mining:
1. Exploration and Prospecting
Before mining can begin, geologists and surveyors conduct extensive exploration and prospecting to locate iron ore deposits. This involves:
- Geological Surveys: Using geological maps and satellite imagery to identify potential ore deposits.
- Geophysical Methods: Employing techniques like magnetic surveys, gravity surveys, and seismic surveys to detect ore bodies.
- Drilling: Conducting exploratory drilling to obtain core samples, which are analyzed to determine the quality and quantity of the ore.
2. Planning and Development
Once a viable ore deposit is identified, detailed planning and development are necessary to prepare for mining. This includes:
- Feasibility Studies: Assessing the economic viability of the mining project, including cost estimates and potential revenue.
- Environmental Impact Assessments: Evaluating the potential environmental impacts and obtaining necessary permits and approvals.
- Mine Design: Designing the layout of the mine, including the location of access roads, processing facilities, and waste disposal areas.
3. Extraction
The actual extraction of iron ore can be done using several methods, depending on the geology of the ore deposit and the surrounding environment. The main methods include:
a. Open-Pit Mining
- Drilling and Blasting: Large holes are drilled into the rock, filled with explosives, and detonated to break up the ore.
- Loading and Hauling: The broken ore is loaded onto large trucks or conveyor belts and transported to the processing plant.
b. Underground Mining
- Room and Pillar Mining: Ore is extracted in a series of rooms, leaving pillars of ore to support the roof.
- Longwall Mining: A long wall of ore is mined in a single slice, with the roof allowed to collapse behind the mined-out area.
4. Crushing and Grinding
Once the ore is extracted, it must be crushed and ground to liberate the iron particles from the surrounding rock. This involves:

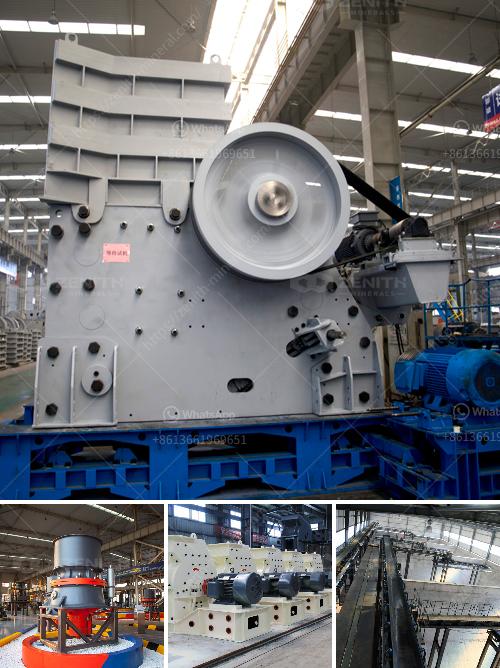

- Primary Crushing: Large pieces of ore are reduced to smaller, more manageable sizes using jaw crushers or gyratory crushers.
- Secondary Crushing: Further reduction of ore size using cone crushers or impact crushers.
- Grinding: The crushed ore is ground into a fine powder using ball mills or rod mills.
5. Concentration
The ground ore is then subjected to various concentration processes to increase the iron content and remove impurities. Common methods include:
- Magnetic Separation: Using magnets to separate iron-rich particles from the waste material.
- Flotation: Adding chemicals to a slurry of ground ore and water to create froth, which selectively binds to iron particles and floats them to the surface for collection.
- Gravity Separation: Using gravity to separate heavier iron particles from lighter waste material.
6. Pelletizing and Sintering
The concentrated iron ore is often processed into pellets or sinter to improve its suitability for use in blast furnaces. This involves:
- Pelletizing: Mixing the concentrated ore with a binder and rolling it into small balls, which are then heated to harden them.
- Sintering: Heating fine iron ore particles until they fuse together into larger, porous masses.
7. Transportation
The final product, whether in the form of pellets, sinter, or lump ore, is transported to steel mills or other processing facilities. This can involve:
- Rail Transport: Using trains to move large quantities of ore over long distances.
- Shipping: Loading the ore onto ships for transport to international markets.
8. Environmental Management
Throughout the mining process, measures are taken to minimize environmental impacts, including:
- Waste Management: Proper disposal of waste rock and tailings to prevent contamination of soil and water.
- Reclamation: Restoring mined land to its natural state or repurposing it for other uses.
- Water Management: Ensuring that water used in the mining process is treated and recycled.
Each of these processes is critical to the efficient and sustainable extraction of iron ore, ensuring that the raw material is available for the production of steel and other iron-based products.
